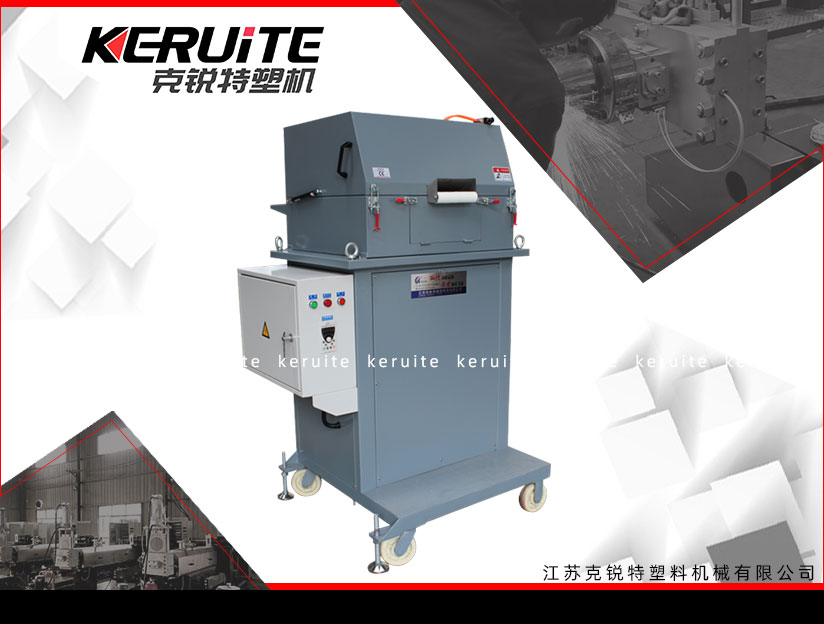

塑料切粒機
塑料切粒機KRT-J型切粒機有龍門和懸臂式兩種規格。根據電機功率產量在300-1000
公斤每小時之間，建議切粒條數在1-40根之間。
KRT type dicing machine gantry type, cantilever type two kinds of
specifications. According to the motor power capacity between 300-1000 kg per hour, suggested that cutting a number between 1-40.
技術特點：
操作安全可靠
清理維護方便
運行平穩、噪音低
精度高，切粒斷口平整。均勻、美觀
結構緊湊。易移動
高耐用刀具和壓輥，利于持續工作
Technical characteristics: safe and reliable operation.
Maintenance is convenient.
Smooth operation, low noise.
High precision, cutting grain fracture is flat and level. Uniform, beautiful.
Compact structure. Easy to move.
High durability knives and pressure roller, to continue to work.
|
型號 |
電機功率 |
調速方式 |
切粒條數 |
最大牽引速度 |
切粒尺寸 |
最大產量 |
旋轉刀直徑 |
旋轉刀齒數 |
膠輥直徑 |
外形尺寸 |
|
Model |
Power（kw） |
Speed-ad
Justing way |
Noodle
Number |
Max.towing speed（m/mim） |
Granule/pellet size（mm） |
Max
.Output（kg/h） |
Rotate knifedia(mm) |
Blade number |
Robber roller dia(mm) |
Dimensions (mm) |
|
Krt-j-300 |
3-4 |
電磁滑差或變頻器 |
18 |
96 |
3*3 |
300 |
160*150 |
24 |
100*50 |
950*850*1600 |
|
Krt-j-500 |
5.5-7.5 |
電磁滑差或變頻器 |
30 |
96 |
3*3 |
600 |
200*200 |
32 |
10*200 |
1000*950*1700 |
|
Krt-j-900 |
11-15 |
電磁滑差或變頻器 |
40 |
96 |
3*3 |
1000 |
200*300 |
32 |
100*300 |
1100*1000*1800 |
|
